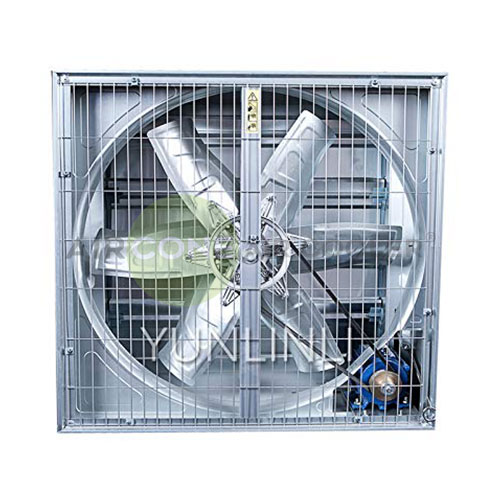

| Model Specification | Diameter blade (mm) | Blade rotation speed rpm | Motor rotation speed rpm | Air Flow (m3/h) | (pa) Total pressure | Noise decibeis | (w) input power | Rated voltage | (mm) Height | (mm) Width | (mm) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AACex - 800 | 710 | 612 | 1400 | 18000 | 75 | ≤ 70 | 370 | 380 | 800 | 800 | 400 |
| AACex - 1000 | 900 | 513 | 1400 | 23000 | 70 | ≤ 70 | 750 | 380 | 1000 | 1000 | 400 |
| AACex - 1380 | 1250 | 439 | 1400 | 44000 | 56 | ≤ 75 | 1100 | 380 | 1380 | 1380 | 400 |
